Insulated Gate Bipolar Transistor (IGBT):

An Insulated Gate Bipolar Transistor (IGBT) is basically a hybrid MOS-gated turn on/off bipolar transistor that combines the features of MOSFET (voltage control features), BJT (fast acting features and high power capability) and thyristor. The device is also known as MOSIGT, COMFET (conductively modulated FET), or GEMFET (gain modulated FET), and was originally named as IGT (insulated gate transistor) or IGR (insulated gate rectifier)

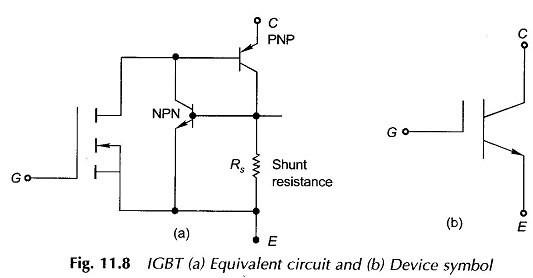

Figures 11.8(a) and (b) show the approximate equivalent circuit of IGBT and the circuit symbol of Insulated Gate Bipolar Transistor.

Insulated Gate Bipolar Transistor (IGBT)

The device was commercially introduced in 1983, and since then the ratings and characteristics have improved considerably. The IGBT offers significant advantages over BJT and power MOSFET in medium power (a few kW to a several hundred kW) medium frequency say up to 50 kHz power converter applications. Recently, IGBTs are becoming popular for medium power applications, such as dc and ac motor drives, UPS systems, power supplies, etc. Though they are bit costlier as composed to BJT’s , lower gate drive requirement with smaller snubber and lower switching loss make IGBT converter more efficient with smaller size and lower cost. It is expected that IGBTs will eventually replace BJTs in most power applications in near future. The modern IGBT is available with a 1200 V, 400 A power rating.

Important features of IGBT:

  • No thyristor like latching problem
  • Current density higher than BJT and MOSFET
  • Popularity in medium power AC drives
  • SOA (Safe operating area) is limited by Tj (junction temperature)
  • Lower ratio of gate collector capacitance to gate emitter capacitance resulting in improved Miller feedback effect
